Zero-Height Scissor Lift for Truck Loading applications

Zero Height Scissor Lift

The Challanges

Nandan GSE was approached by a Raigad (Maharashtra) based Paint Manufacturer company for loading of the Boxes & carton into trucks. They were concerned about the health effects on the loaders & wanted to makes it user friendly in terms of loading & unloading solutions.

Client: AkzoNobel India

Location: Raigad, Maharashtra

Product Class: Zero Height Scissor Lift

Type: Highly Customized

The Solution

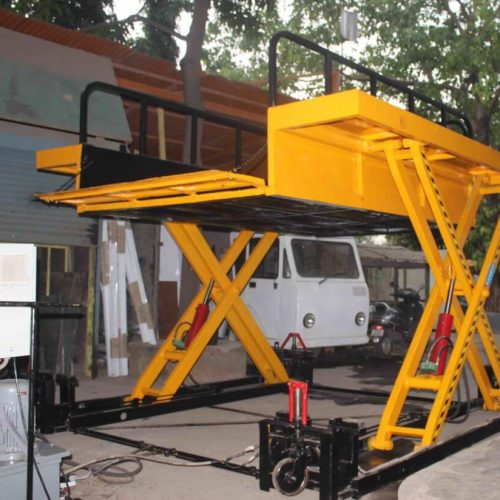

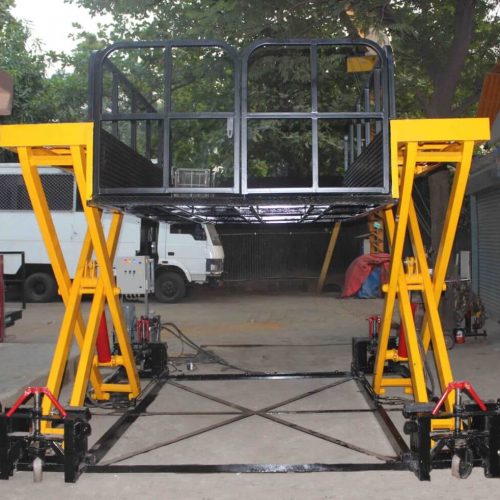

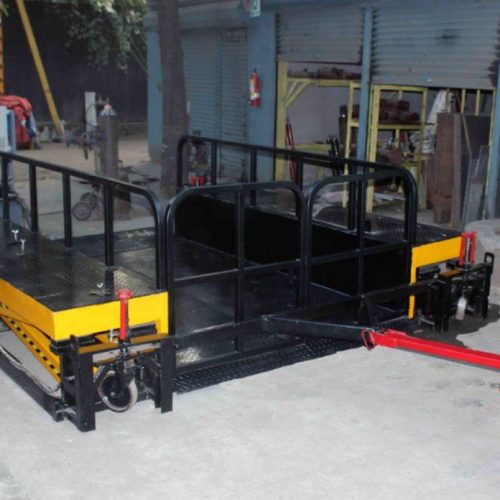

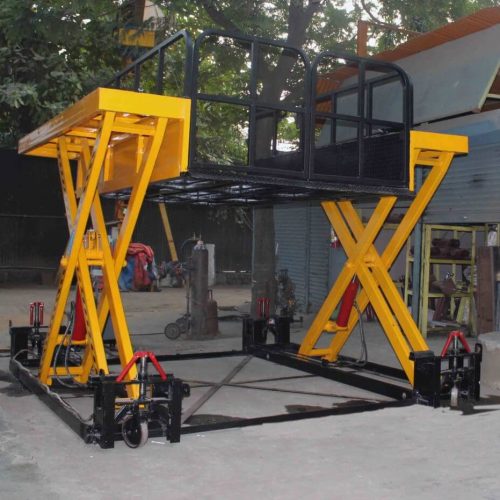

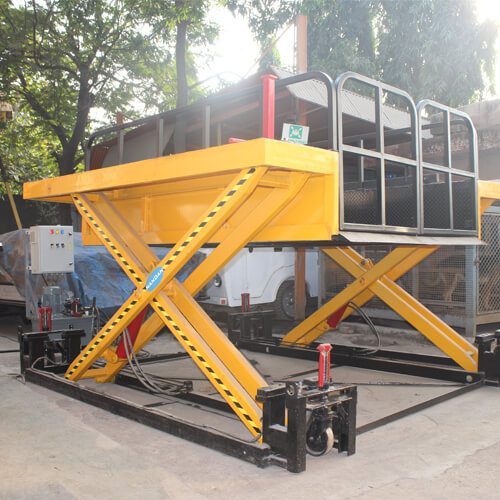

NGSE understood the exact need of customer and gave them a perfect suitable solution of Wheel Mounted Zero Height Scissor Lift which are used for the loading of the trucks in the premises. The minimum height of just about 50mm ensures ease of loading. It can be also designed to be robust enough for carrying a forklift onto the container.

Nandan’s Zero Height Lift is designed to lift products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a wide range of available material handling equipment’s including standard hand pallet truck & forklift.

The whole system was designed and manufactured in safe and ergonomic way. And this equipment had all the safety parameter to meet the customer compliance (Environment & Health ).

Specification:

  • Capacity  :2000kg
  • Maximum height :1800mm
  • Platform dimension :3000/1950mm
  • Power source : Hydraulic operated

Key results

  • Ground level, roll-on & roll-off loading & unloading. The first scissor lift table to lower to ground level for easy loading of a wheeled cart or pallet truck.
  • No required lifting decreases the possibility of worker injuries. The Zero-Height Scissor Lift eliminates the need to lift loads the 8 to 10 inches required to load a conventional lift table.
  • Worker strain and the potential for lost time due to injuries are minimized.
  • Wheel-mounted option makes it easily relocatable anywhere
